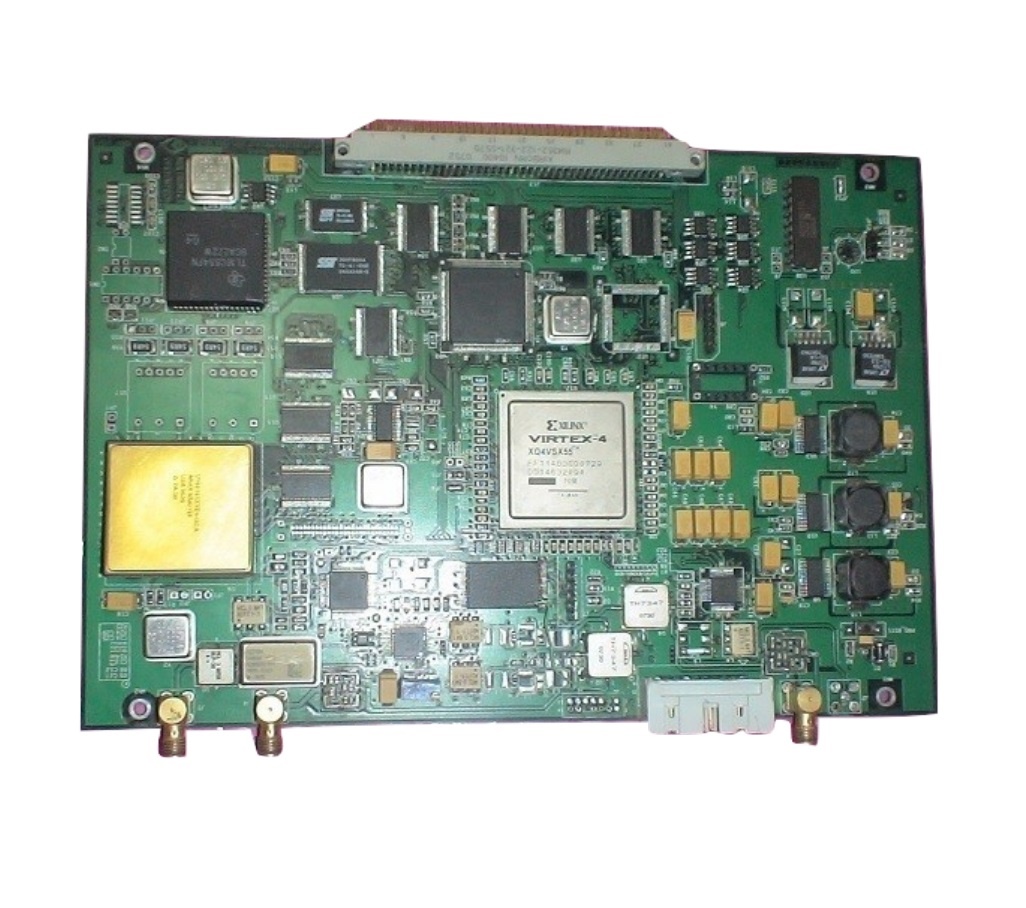

Signal Processor Board

Signal Processor Board

Signal Processor Board

MS 1532


ENQUIRE NOW



Features

  • Frequency coverage from 5 kHz to 30 MHz in 1-Hz steps
  • High dynamic range: +30 dBm 3rd-order intercept typical
  • Digital filtering provides 58 IFBWs from 56 Hz to 8.0 kHz with exceptional shape factors
  • AM, Synchronous AM, FM, CW, USB, LSB & ISB detection modes standard
  • Tunable notch filter
  • Fast, flexible scanning with 100 memory channels
  • Large readable LED displays & user-friendly controls
  • Noise blanking & pass band tuning
  • Internal switchable preamplifier & attenuator
  • Operator-selectable RS-232, RS-485, or
  • RS-422 remote control
  • Viretx 5 FPGA based design (Two virtex for image processing)
  • LPC2468 ARM 7 Processor based design
  • MIL1553B and RS485 Interface
  • Two High speed 14 bit ADC (125MSPS) for I & Q Sampling
  • Direct sampling 2-30MHz
  • Audio CODEC
  • Conduction Cooled Board



Applications

  • Digital Receivers
  • Communication Systems
  • RADAR



Environmental Condition

  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C
  • 90% Relative Humidity (Non-condensing)
