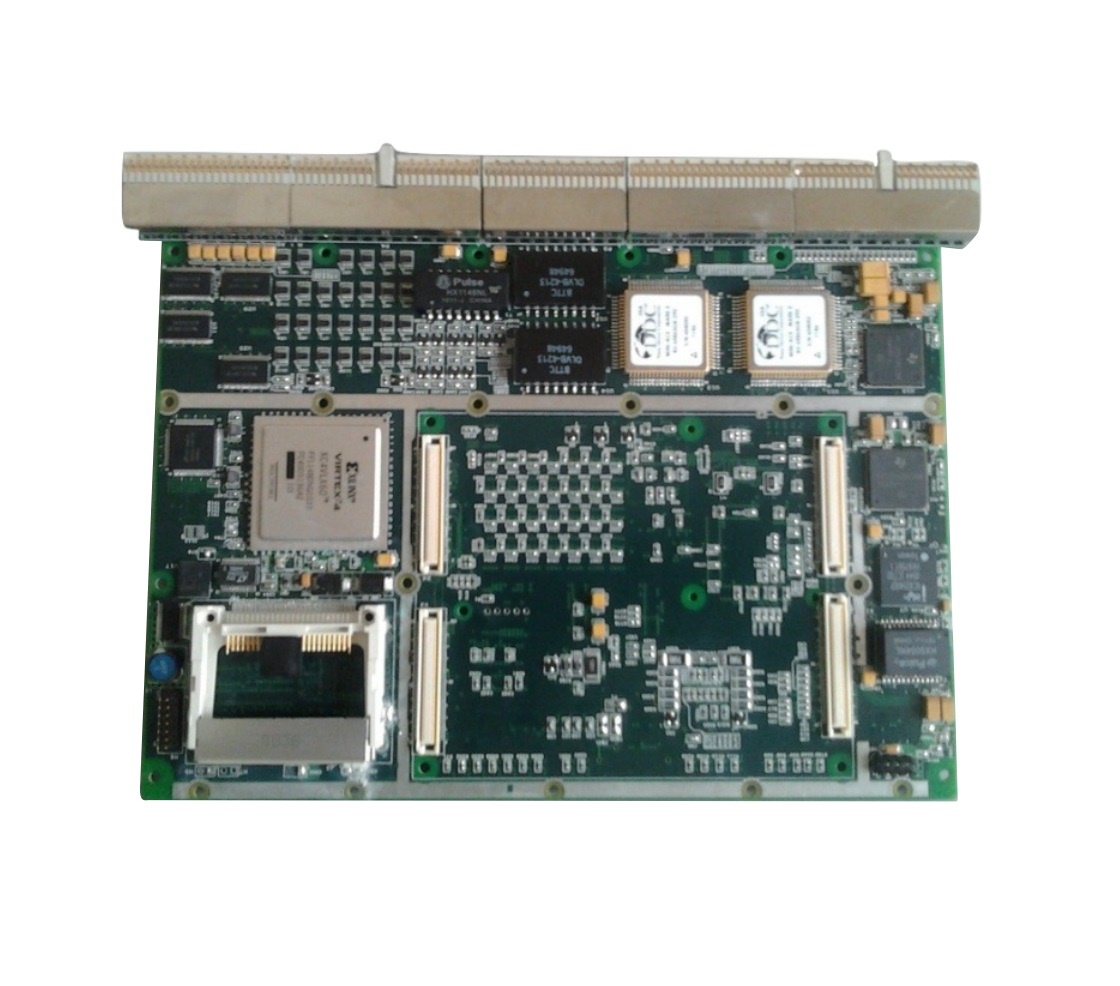

The Ruggedized CPCI Processor Board is a high-performance computing solution engineered for extreme defense and aerospace environments. It supports dual-processing options (Pentium or PowerPC) and includes reconfigurable I/O via a Virtex-4 FPGA, providing ultimate flexibility for mission-critical mission computers and ATE systems.
INTERFACE Specifications
Processor & Memory
- Processor: Pentium 1GHZ / PowerPC MPC8640 (1Ghz)
- SDRAM (1024 MB) | FLASH PROM (8 GB MB)
I/O & Communication
- Virtex-4 FPGA for Reconfigurable I/O Capability | Audio Output
- Ethernet Port – 2 Channel (1GBPS)
- MIL1553B – 2 Channel (Dual redundancy)
- USB – 2 | RS232 – 4 Channels | RS422 – 4 Channels
- JTAG – Flash Programming and Debugging
Specifications
- Power Supply Input: 5V DC 40A
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -50°C to +100°C
- 90% Relative Humidity (Non-condensing)
Application
- Airborne | ATE | Data Acquisition System
- Process Control Industries | Industrial Automation
