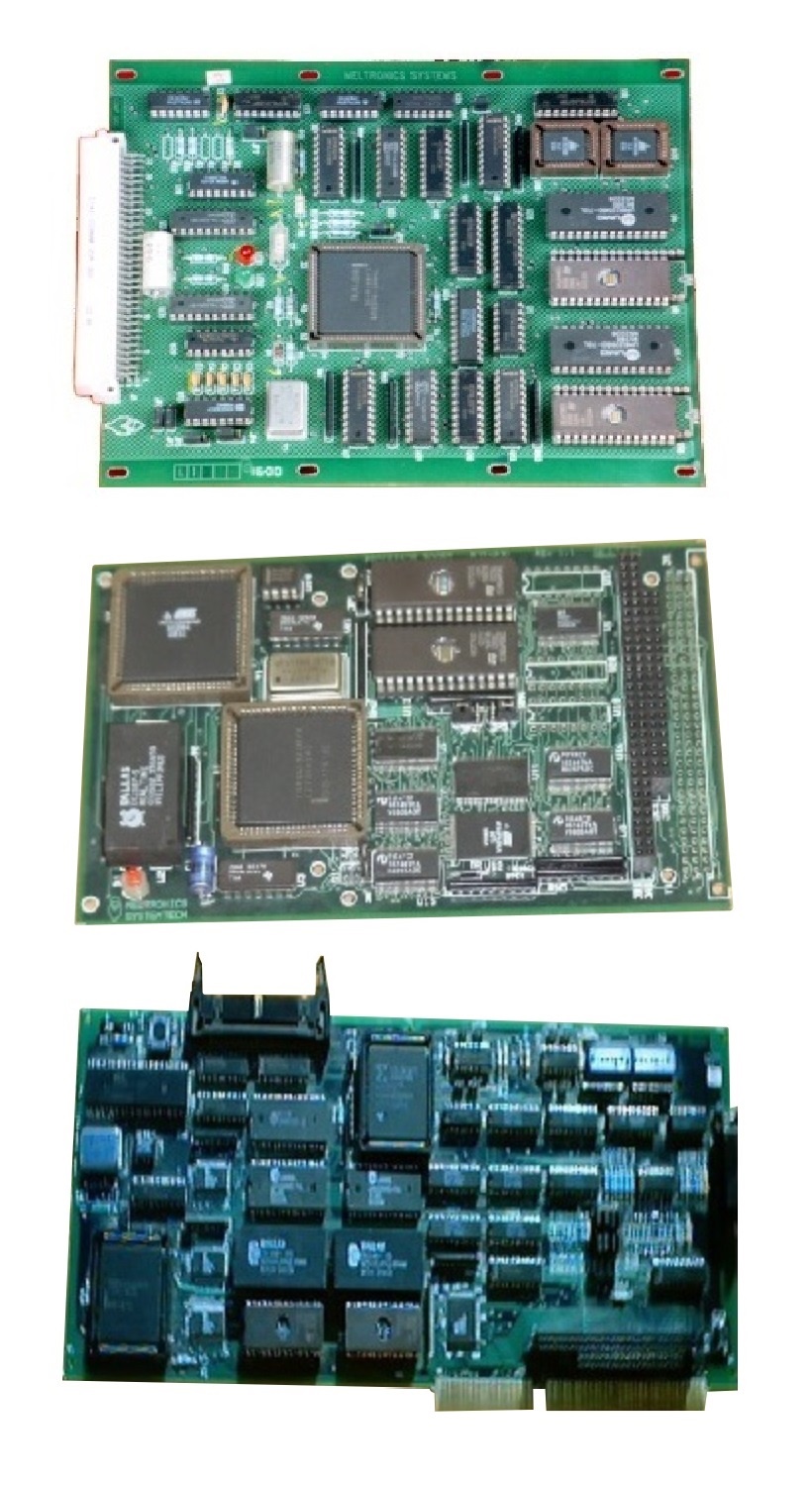

The Intel 186 EB & EC Processor Boards are versatile 40MHz industrial computing modules designed for reliability in ATE and process control. They offer a flexible I/O interface including real-time clocks, external resets, and support for both standard ISA and PC104 form factors.
Specifications
Processor
- Intel 80186EB / EC, 5V, 40 MHz
Memory
- 128KB of SRAM
- 128KB of EPROM
- 512KB of FLASH
Serial I/O
- Two channels of RS232 / RS422
I/O Interface
- Real Time Clock & NVRAM
- External Interrupt & External Reset
- Standard ISA bus through a 96-pin Euro connector
- Standard ISA bus through PC 104 Connector
- Standard Single EURO Form Factor & PC104 Form Factor
- Watchdog Timer
Applications
- ATE | Data Acquisition System | Process Control | Industrial Automation
Environmental Conditions
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 90% (Non-condensing)
Other Available Models
- ISA 186EB - MS 1504
- PC104 186EB - MS 1505
- ISA 186EC - MS 1506
