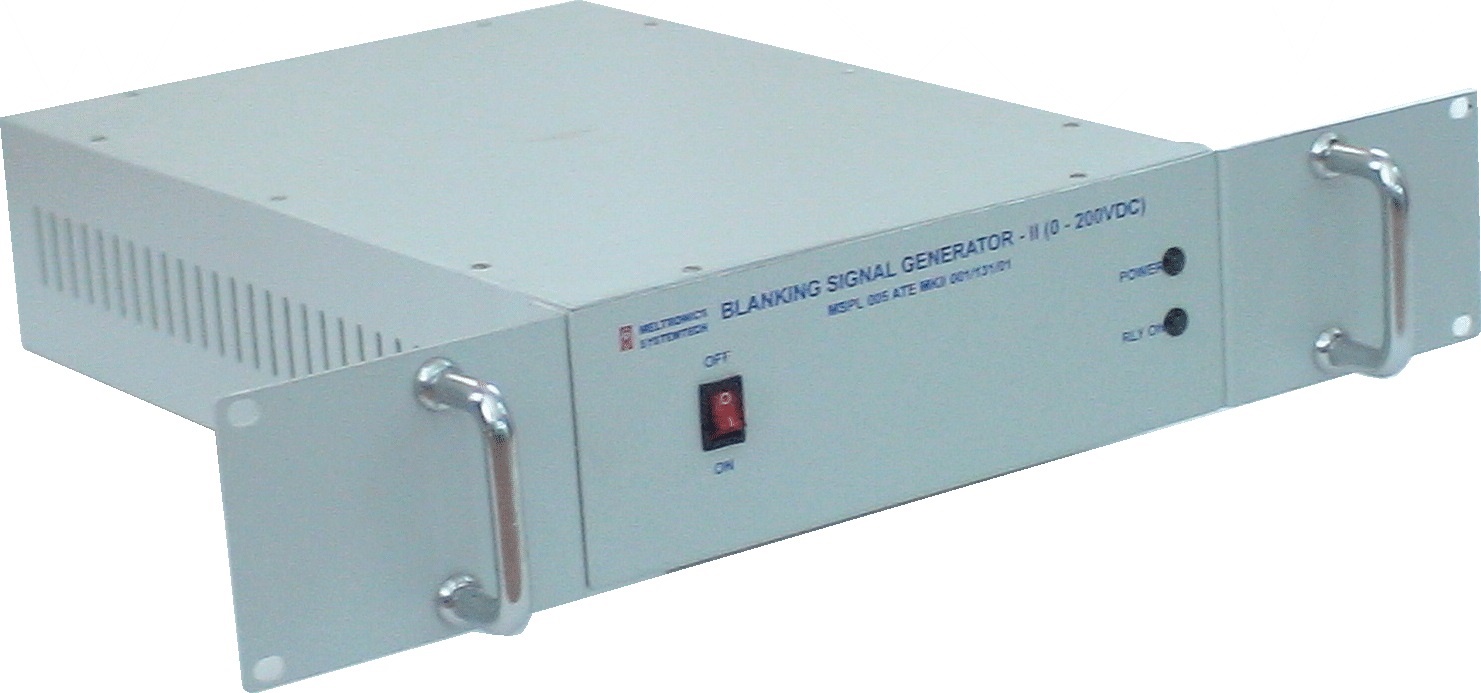

The Blanking Signal Generator II is a specialized power stimulus unit used for generating continuous and pulsed variable power outputs (Voltage). It is designed to provide precise voltage regulation for demanding industrial and aerospace testing environments, supporting high-voltage DC programmable outputs up to 200V.
Technical Specifications
- Input: 1φ, 220-240V AC 50Hz
- Interface: RS232 Interface
- Programmable Output Voltage: 0-200V DC
- Regulation: Linear Voltage Regulation
- Output Current: 500ma
- Accuracy: ±3% at 1VDC | ±1% at 50VDC
- Resolution: 10 bits
- Protections: Over Voltage (110%) | Over Current (105%)
- Mechanical: 19" Rack Mount, 3u Height
- Dimension: 375(L) * 250(W) * 35(H) (mm) | Weight: 2Kg
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to +85°C
- 90% Relative Humidity: (Non-condensing)
