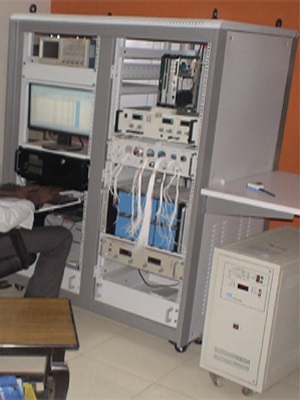

SSFDR Software Integration Rig

SSFDR Software Integration Rig

SSFDR Software Integration Rig

MS 1112

Software Integration Rig (SIR) is an Industrial PC based system is used to test the SSFDR (Solid State Flight Data Recorder) of SU30 Aircraft. SIR is a PXI based test platform and it is used to test independent and integrated software tests of the SSFDR.


ENQUIRE NOW



Features:

  • Generate all aircraft parameters required for recording
  • Generate the Audio data for recording
  • Generate all control signals for LRU’s
  • Simulate the condition to perform the particular function in the LRU’s
  • Frame generation for sending data to the RU
  • Read the data from the telemetry ports of the SSFDR
  • Extract the required data from the frame
  • Report generation
  • Check all signals generated by SIR through the Self Test Box
  • Calibrate all the analog signals
  • It has MIL1553B, ARINC 429, ARINC 717, RS232, Ethernet, Discrete and Analog signals for simulation
  • Audio analyzer



Specifications

  • 19’’ Dual Rack
  • Power Supply Input: 230V AC 50Hz
  • Operating Temperature:0°C to 55°C
  • Storage Temperature: -25°C to +85°C
  • 90% Relative Humidity (Non-condensing)
