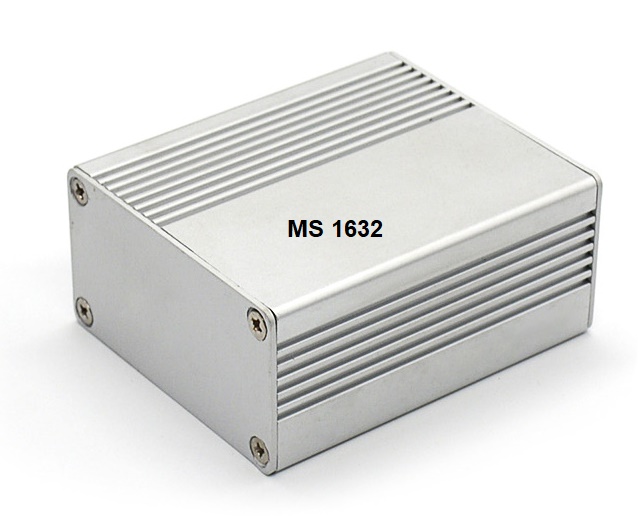

The Multi Output Buffer Unit is used for driving single input to 32 outputs. This unit drives an analog input to two different 16 set of outputs through two 50 Pin standard D Type connector. The unit works on standard 230V AC.
Specifications:
- Portable
- Signal Input Spec: +/- 10V, Frequency Range: up to 5 Mhz
- Driving Capability: up to 5 meters on standard shielded cable
- 1 Input to 32 Outputs
- Test Point and Status Indicator
- Works on 230 V AC (Standard AC DC Adapter)
Application
- ATE
- Test & Measurement
- Simulation
Environmental Conditions
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to +85°C
- 90% Relative Humidity (Non-condensing)
