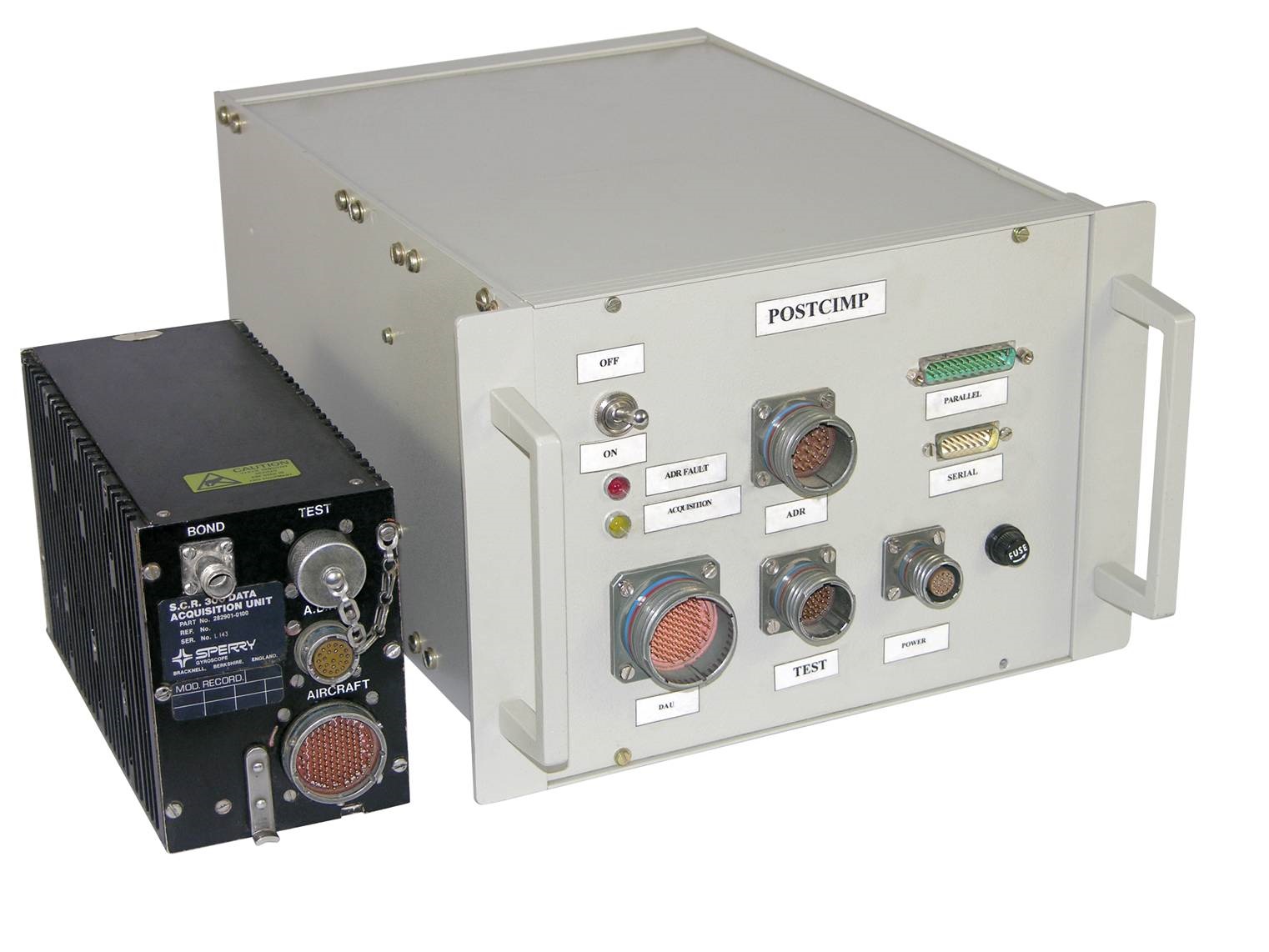

Data Retrieval and Analyzer Unit

Features

• Retrieves the Data from Magnetic / Solid State Recorders (Supports JAGUAR, AN32, IJT, ALH Platforms)
• RS232/RS422/Bi-Phase/USB interface with PC AT
• Presents Error Messages and Test Reports
• Replay, Analysis and printout of selected parameters
• Calibration facility for ADR and DAU
• Portable System for Snag Analysis of Aircraft
• Reports in Tabular/Graphical formats
• Used to check serviceability of ADR, DAU without removing from aircraft

Specifications

• System derives power supply from Aircraft 28V
• Capable of storing 4 Aircraft data in Interface Unit
• Contain 16 MB Flash Memory
• Operating Temperature: 0 to 55° C
• Storage Temperature: –10 to 70° C
• Relative Humidity up to 90%(non-condensing)

Platforms:

MS 1200 – IJT, MS 1200 – ALH, MS 1200 – JAG, MS 1200 – AN32, MS 1200 – SU30
