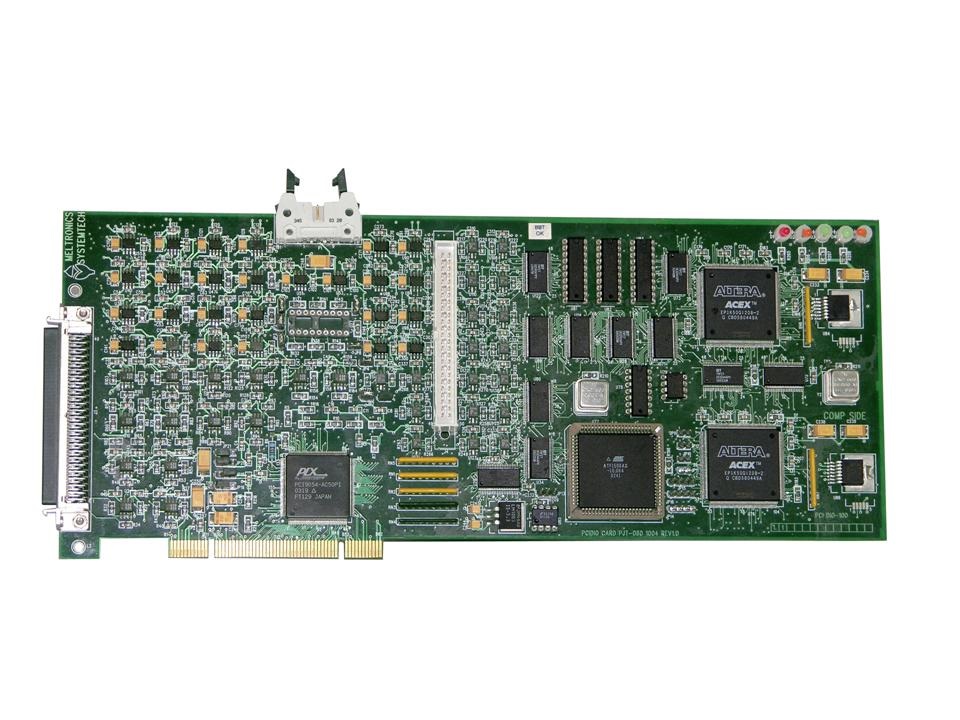

Versatile PCI Digital IO Board with extensive discrete input/output capability, integrated pulse generation, and opto-isolated interfaces for industrial reliability.
Features
- Bus Interface: PCI Bus
- Counter/Timer: 16 Channels
- Counter Size: 32 bit
- Max. Source Frequency: 80MHz
- Compatibility: 5 V TTL/CMOS
- Discrete Inputs: 24 Channels
- Discrete Outputs: 24 Channels
- Pulse Generation: 12 Channels
- Bi directional I/O's: 8 Channels
- Oscillator stability: 50 ppm
- Op-to isolation for I/O's
- DMA buffered operation
- 16-bit data bus 32 bit Address bus for External Memory Interface
- The Pulse Width and PRI of the pulses can be varied
- The pulse generation frequency from 10Hz to 40MHz (25ns to 100msec)
- The no. of pulses controlled from 1 to 255 pulses
- All the pulse input and the output signals and Bi-directional write signals driven through Pin Driver
- Driver interface for Windows2000/XP/VISTA and LINUX OS
Applications
- ATR / ATE
- Data Acquisition System
- Process Control / Industrial Automation
Environmental Condition
- Operating Temp: 0°C to 55°C
- Storage Temp: -20°C to +65°C
- Humidity: 90% (non-condensing)
