CPCI Avionics Bus Card

CPCI Avionics Bus Card

CPCI Avionics Bus Card

MS 3634I

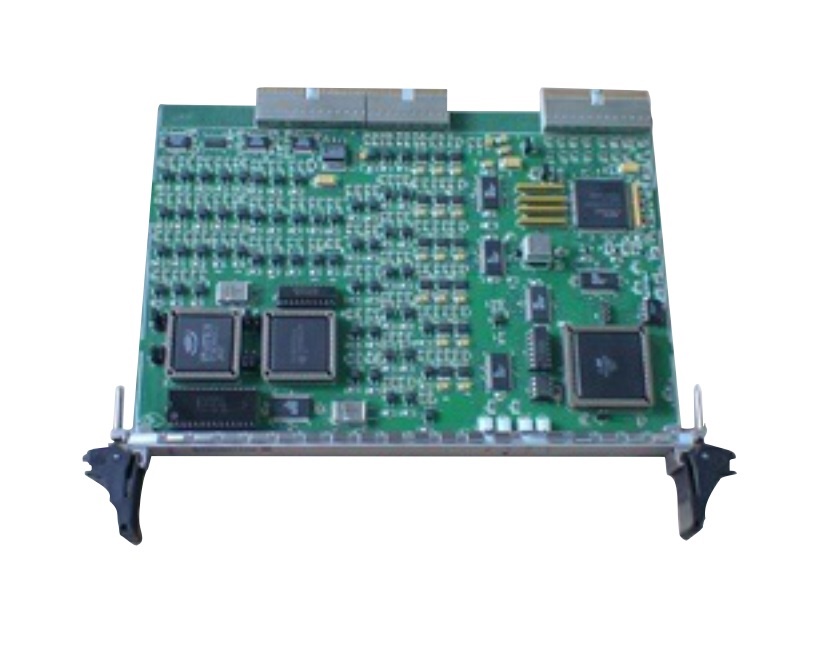

Avionics Bus Card is high end ARM core based MILBUS Communication Board. It is suitable for high speed Data Acquisition, Simulation, ATE applications. This board have MIL1553B, ARINC429, CCDL, digital I/O interface, USB, RS232, Ethernet interface and external bus interface. Board is well suitable for special type data acquisition & processing application. Board is based CPCI architecture and can be used with CPCI or PXI backplane. Rear IO Board is used to interface all IO’s of the board from Rear Side.


ENQUIRE NOW



Specification

  • Arm Core Based Processor
  • Shared DPRAM for PCI interface
  • Flash Memory
  • ARTIX/KINTEX FPGA - High Speed Logic Device
  • 32 Bit, 33 / 66 MHz bus through cPCI /PXI backplanes
  • Board Dimension is 160mm x 233.35mm
  • Power Requirements: +12V/2.5A, -12V/2.5A and +5V/6A
  • External Bus through Rear IO (16 bit address bus and 16 bit data bus with Control signals)
  • 10/100/1000 MBPS Ethernet
  • 1 Channel RS232 Standard Communication interface
  • 8 Channels CCDL Manchester Bi-Phase Signal communications
  • 8 or 24 Channels ARINC 429 Interface (Transmitter/Receiver - Configurable) (Expandable up to 24 channels)
  • 2 or 8 Channels SPIL (Serial Processor Inter Link) communications (Expandable up to 8 Channels)
    • Up to 10 Mbits/sec operating speed
    • Standard INMOS link protocol
  • 3 Channels Dual Redundant MIL1553B Bus Interface (BC/RT/MT)
  • Ethernet, JTAG, RS232, USB connectors, Status Indicators at front side
  • All IO’s at rear side



Features

  • Three Dual Redundant MIL-STD-1553 Channels, BC/RT/MT Architecture (HOLT/DDC Based Multi-Function Device)
    • Transformer or Direct Coupled Interface
    • Highly Autonomous Bus Controller Architecture, Message Scheduling
    • RT Buffering Options
    • Selective Message Monitor
  • 8 or 24 ARINC 429 Transmitters/Receiver channels
    • Arinc Controller Based design
    • Programmable: High and low bit rate (100 Kb/s & 12.5 Kb/s)
    • Selectable word Parity (ODD/EVEN)
    • Receive Label/SDI Data Filtering and Data Time Stamping
  • 8 Channel Configurable Manchester Bi-Phase Signal communications
    • 1 / 2 / 4 MBPS configurable baud rate
  • 2 or 8 Channel SPIL Interface
    • Configurable 5 or 10 MBPS Speed



Rear IO Board

  • Discrete Interface
  • MIL1553B Interface
  • ARINC429 Interface
  • CCDL Interface
  • SPIL Interface
  • Two 96 Pin Euro Connectors



Software

  • BSPs and Driver software for Windows XP/7/10 and Linux OS
  • ATP Software



Environmental Specifications

  • Operating Temperature: -20 to +65 deg C
  • Storage Temperature: -40 to +85 deg C
  • Humidity: 95% Relative (Non-condensing) @ 40 deg C



Cost

    Rs. 11, 55, 000/- Plus applicable Taxes
