Board Test Adaptor (BTA)

Board Test Adaptor (BTA)

Board Test Adaptor (BTA)

MS 1104

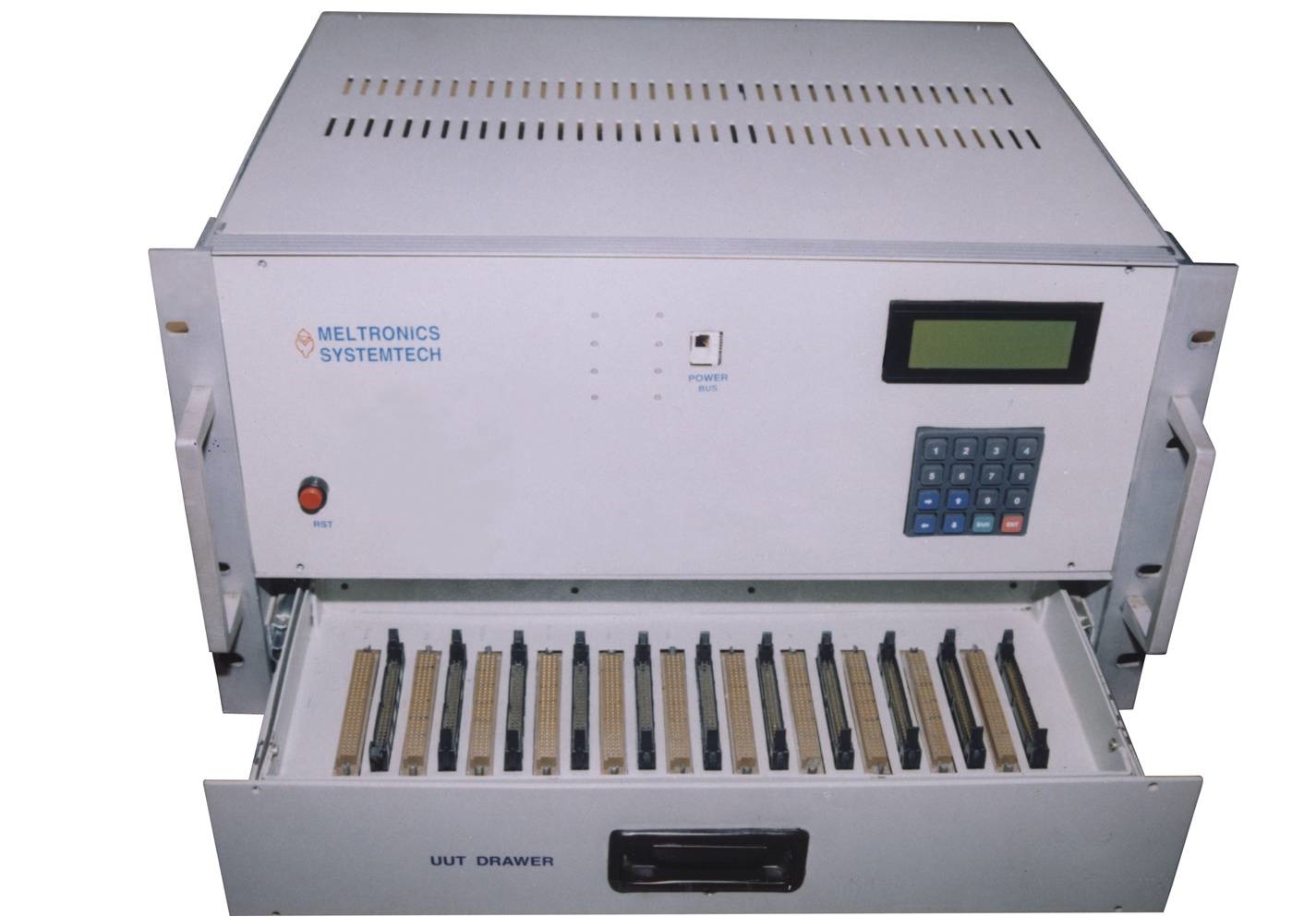

BTA is used to test and validate TARANG (RWR) boards. The BTA has PC interface through RS232 / USB communication port. GUI based Test Software is used to test the UUTs and displays the result.


ENQUIRE NOW



Features

  • Back plane with 8 slots
  • 96 Discrete Outputs, 96 Discrete Inputs
  • 32 Pulse outputs/Timers (1Hz to 10 MHz)
  • Pulse inputs/Counters (1Hz to 40 MHz)
  • 16 bit External Bus
  • 32 Analog outputs (-15V to +15V)
  • 32 Analog Inputs (0V to +20V)
  • 2 RS232 Channels & 4 RS422 Channels
  • Calibration facility
  • Industrial and Mil Standards application
  • GUI Test Software Package (Menu, Schematic and Fault diagnostic)
  • Capability testing of Intel 486DX2, 486DX4, 386EX Boards



Specifications

  • Power Supply: +5VDC, +15VDC, -15VDC
  • Dimension: 266X485X360(HXLXW) mm
  • Weight: 16Kg
  • Operating Temperature: 0 to  +55°C
  • Storage Temperature:  -20 to +80°C
  • Relative Humidity: 10% to 95%, Non-Condensing
  • 19" Rack Mountable System



Applications

  • Simulation
  • Automatic Test Equipment
  • Data Acquisition
  • Industrial Application
